Air-Cooled High-Intensity UV LED Line Curing Lamp 395nm for Inkjet Printing & Cable Marking

Air-Cooled High-Intensity UV LED Line Curing Lamp 395nm for Inkjet Printing & Cable Marking
Air-Cooled High-Intensity UV LED Line Curing Lamp 395nm for Inkjet Printing & Cable Marking Air-Cooled High-Intensity UV LED Line Curing Lamp 395nm for Inkjet Printing & Cable Marking Air-Cooled High-Intensity UV LED Line Curing Lamp 395nm for Inkjet Printing & Cable Marking Air-Cooled High-Intensity UV LED Line Curing Lamp 395nm for Inkjet Printing & Cable Marking

Büyük resim :  Air-Cooled High-Intensity UV LED Line Curing Lamp 395nm for Inkjet Printing & Cable Marking

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: Super-curing
Sertifika: CE/RoHS
Model numarası: CG-L30010-C
Ödeme & teslimat koşulları:
Min sipariş miktarı: 2
Ambalaj bilgileri: Karton ambalaj
Teslim süresi: 5-8 iş günü
Ödeme koşulları: T/T,L/C
İletişim

Air-Cooled High-Intensity UV LED Line Curing Lamp 395nm for Inkjet Printing & Cable Marking

Açıklama
Vurgulamak:

Air-Cooled UV LED curing lamp 395nm

,

High-Intensity UV lamp for inkjet printing

,

LED UV curing system for cable marking

365nm Air-Cooled UV LED Linear Light Source 320W High Intensity Curing System
Model: CG-L30010-C
High-Performance UV LED Line Light Source for Printing, Coating, Adhesive Bonding & Industrial Manufacturing
The CG-L30010-C Air-Cooled UV LED Linear Light Source is designed for high-speed industrial UV curing applications. Utilizing advanced UV LED technology and high-density LED chip arrays, it delivers exceptional irradiance, excellent curing uniformity, low heat generation, and long service life.
Compared with traditional mercury lamps, the CG-L30010-C offers instant ON/OFF operation, energy savings of up to 70%, no mercury pollution, no ozone generation, and minimal maintenance requirements, making it an ideal solution for modern industrial production lines.
Product Images

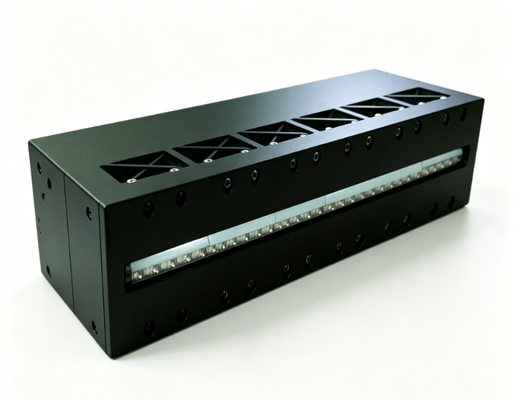

CG-L30010-C UV LED Linear Light Source front view CG-L30010-C UV LED Linear Light Source side view CG-L30010-C UV LED Linear Light Source technical details
Technical Specifications
Parameter Specification Parameter Specification
Model CG-L30010-C Product Type UV LED Linear Curing System
Cooling Method Air Cooling Housing Material Aluminum Alloy
Dimensions (L*W*H) 318 * 55 * 120 mm Emitting Area 300 * 10 mm
Peak Irradiance 2400mW/cm² Irradiance Uniformity >85%
Standard Wavelength 365nm Optional Wavelengths 385nm / 395nm / 405nm
Power Consumption 320W Operating Noise ≤75dB
Lifespan >20,000 Hours Installation Type Production Line Integration
Control Interface Dry Contact / 0-24V Analog Control Signal Pulse Signal / Level Signal
Alarm Output Dry Contact Signal Optional Monitoring LED Status / Irradiance Monitoring
Working Mode Continuous / Intermittent Customization Available

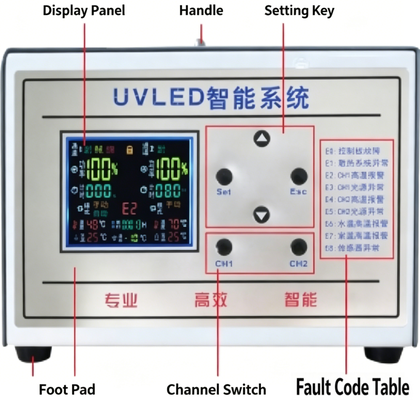

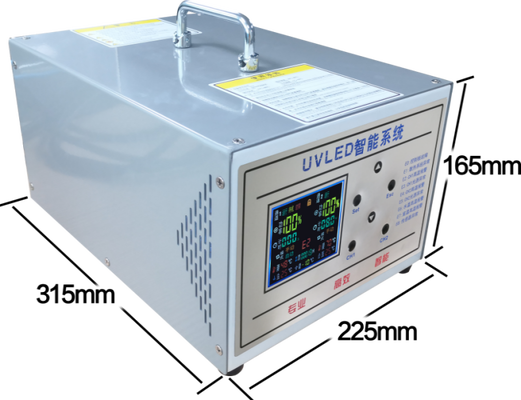

Intelligent Controller Specifications
Parameter Specification Parameter Specification
Model CG-L30010-C Controller Controller Type Intelligent UV LED Controller
Dimensions 315 * 225 * 165 mm Weight 6kg
Power Supply AC220V 15A Cooling Method Air Cooling
UVLED Channels 2 Channels Maximum Drive Power 2400W

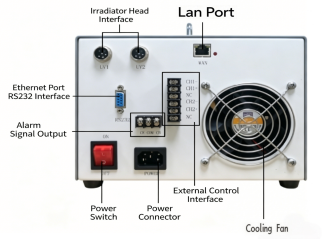

Communication Interface RS232 / Ethernet I/O Control Supported
External Control Dry Contact / Analog Signal Touch Panel Integrated LCD Screen
Key Features & Advantages
  • UV Lamp + Controller Integrated Solution
  • High Irradiance up to 2400mW/cm²
  • PLC and Automation Compatible
  • RS232 & Ethernet Communication
  • Independent Multi-Channel Control
  • Stable Air-Cooled Design
  • 20,000+ Hour Lifespan
  • Mercury-Free & Environmentally Friendly
  • OEM & ODM Customization Available
Frequently Asked Questions
What UV wavelengths are available?
The standard wavelength is 365nm, with optional wavelengths of 385nm, 395nm, and 405nm available to match different UV materials and curing requirements.
What is the maximum UV intensity?
The CG-L30010-C provides a maximum irradiance of 2400mW/cm², enabling fast and efficient curing for industrial applications.
Can the UV output be adjusted?
Yes. The intelligent controller allows users to adjust the UV output according to different curing processes and production requirements.
Is wavelength customization available?
Yes. We can provide customized wavelengths, curing areas, and system configurations based on customer requirements.
What materials can this system cure?
It is suitable for curing:
  • UV inks
  • UV adhesives
  • UV coatings
  • UV varnishes
  • UV resins
  • Photosensitive materials
