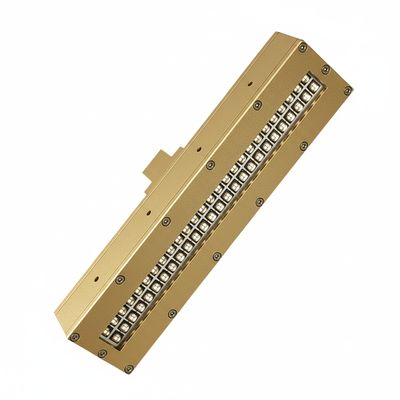

1200W LED UV Ink Drying System UV Lamp Light For Sheet-Fed Offset Press OEM

 LED UV Curing System Uv Lamp Dryer For Sheet-Fed Offset Press

LED UV Curing System Description

In modern industry, LED UV curing technology has become a dominant method of UV radiation. It is widely adopted for curing various UV resins, inks, and coatings due to its characteristic fast drying speed and exceptional performance.

LED UV Curing System Datasheet

LED UV Curing System Advantages

1. Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
2. Environment friendly , No mercury. No ozone making and Zero VOC emissions.
3. NO warm-up , turn on/off instantly.
4. Low temperature, can be used for PE and film ink curing .
5. Long lifespan, 20000hours .

LED UV Curing System FAQ:

Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.

Q2: What’s your led brand ?

A2:LG/Seoul

Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz

Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling

Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%

Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.

Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
