2400W High-power Water Cooling LED UV Ink Drying System. Processing the curing of inks, varnishes, and coatings on high-speed production lines

Name: 2400W High-power Water Cooling LED UV Ink Drying System. Processing the curing of inks, varnishes, and coatings on high-speed production lines
Brand: Shenzhen Super- curing Opto-Electronic CO., Ltd
SKU: CG-CT3-40027-1500A
Price: 2,000.00 USD
Availability: InStock

Tüm ürünler

LED UV Kürleme Sistemi
(61)

UV LED Kürleme Ekipmanları
(75)

LED UV Kür Lambası
(32)

UV Kürleme Çözümü
(42)

UV Kür Işık
(30)

UV Kürleme Konveyör Sistemleri
(41)

UV Kür Odası
(44)

LED UV El Feneri
(28)

Ultraviyole Siyah Işık
(18)

UV Kurutma Makinesi
(24)

El Tipi UV Lambası
(41)

Sterilize lamba
(10)

UV Cure Yapıştırıcılar
(13)

Sertifika

Müşteri yorumları

Uzun süredir işbirliğimiz var, bu iyi bir deneyim.

—— Mike

Saygılarımızla, yakında bir dahaki sefere işbirliği yapabileceğimizi umuyoruz.

—— kitap

Leduv el fenerinizi çok beğendim, elde tutuluyor ve kullanımı çok kolay.

—— Christophe

UV lambası, serigrafi makinemizin verimliliğini büyük ölçüde artırıyor, harika!

—— Alfie

UV Kürleme Ünitesi kalitesi mükemmel; bir yıldan uzun süredir hiçbir sorun yaşamadan kullanıyorum.

—— Oliver

Bu lamba, ambalajlarımızdaki serigrafi baskıyı kürlemek için mükemmel. Bayılıyorum.

—— Ethan.

Ben sohbet şimdi

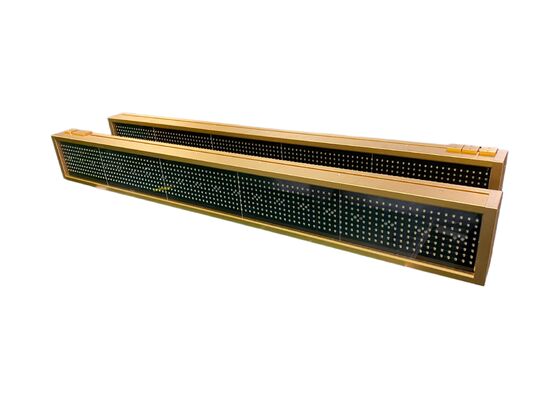

2400W High-power Water Cooling LED UV Ink Drying System. Processing the curing of inks, varnishes, and coatings on high-speed production lines

Büyük resim : 2400W High-power Water Cooling LED UV Ink Drying System. Processing the curing of inks, varnishes, and coatings on high-speed production lines

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	CG
Sertifika:	CE*RoHS
Model numarası:	CG-CT3-40027-1500A

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 TAKIM
Fiyat:	4000-6200usd 1 set
Ambalaj bilgileri:	tahta sandık
Teslim süresi:	10-15 iş günü
Ödeme koşulları:	L/C,T/T
Yetenek temini:	10 set/gün

İletişim

2400W High-power Water Cooling LED UV Ink Drying System. Processing the curing of inks, varnishes, and coatings on high-speed production lines

Açıklama

Anahtar kelime:	LED UV Kürleme Sistemi	Güç:	2400W
Giriş Gerilimi:	AC85-265V	Dalga uzunluğu:	395nm
Paketleme Detayları:	Su Soğutma	UV yoğunluğu:	18W/CM2
Garanti:	2 Yıl	paket:	tahta sandık
Vurgulamak:	2400W LED UV drying system , water cooling UV ink curing , high-speed production line coating dryer

2400W High-power Water-cooled UV Lamps for Wide-width Roll Paper

LED UV Curing System Description

For the drying of UV series materials—be it resin, ink, varnish, adhesive, or coating—the LED UV curing lamp offers a contemporary, high-performance method. This new technology utilizes ultraviolet light to deliver quick, high-quality curing.

LED UV Curing System Datasheet

Model	CG-CT10-1000*50-2400A	Lamp Color	Rose Golden
Power	2400W	Chip Brand	LG/Seoul
Input Voltage	AC85-265V	Wavelength	365/385/395/405nm
Application	UV ink/varnish/coating/adhesive curing	Life Span	20000H
Cooling Way	Water Cooling	Emitting Window Size	Customized
UV Intensity	18W/CM²	Dimmable	0%-100%
Best Emitting Distance	30-50mm	Package	Wooden Case

LED UV Curing System Advantages

Energy-saving - normally 1000W LED UV equals 6000W mercury lamp drying effect
Environment friendly - No mercury, no ozone making and VOC discharge
No warm-up - turn on/off instantly
Low temperature - can be used for PE and film ink curing
Long lifespan - 20,000 hours

Product Details

UV Curing Conveyor Systems FAQ

Q1: What's the wavelength of the LED UV lamp?

A1: Usually 395-405nm. The 395nm/385nm is used for printing machines, 365nm is for adhesive.

Q2: What's your LED brand?

A2: LG/Seoul

Q3: What's the material of lamp and lens?

A3: Aluminium/quartz

Q4: What's the cooling way for the LED UV curing system?

A4: Water or air cooling

Q5: Can the UV intensity be changed?

A5: Yes, the UV intensity is changeable from 0%-100%

Q6: What's the maximum energy of UV LED lamp?

A6: It depends on emitting time - the longer the higher energy output total amount.

Q7: What's the lifespan of the UV LED curing lamp?

A7: Our warranty is 2 years for all system (chiller/power supply), mostly can reach 5 years.
