LEDUV Rotary 360 Degree Curing Machine Screen Printing Conveyor Dryer

Name: LEDUV Rotary 360 Degree Curing Machine Screen Printing Conveyor Dryer
Brand: Shenzhen Super- curing Opto-Electronic CO., Ltd
SKU: CG-GHL-W400-360*27-A/C
Price: 2,750.00 USD
Availability: InStock

Tüm ürünler

LED UV Kürleme Sistemi
(36)

UV LED Kürleme Ekipmanları
(55)

LED UV Kür Lambası
(20)

UV Kürleme Çözümü
(21)

UV Kür Işık
(28)

UV Kürleme Konveyör Sistemleri
(33)

UV Kür Odası
(33)

LED UV El Feneri
(22)

Ultraviyole Siyah Işık
(15)

UV Kurutma Makinesi
(21)

El Tipi UV Lambası
(29)

Sterilize lamba
(7)

Sertifika

Müşteri yorumları

Uzun süredir işbirliğimiz var, bu iyi bir deneyim.

—— Mike

Saygılarımızla, yakında bir dahaki sefere işbirliği yapabileceğimizi umuyoruz.

—— kitap

Leduv el fenerinizi çok beğendim, elde tutuluyor ve kullanımı çok kolay.

—— Christophe

Ben sohbet şimdi

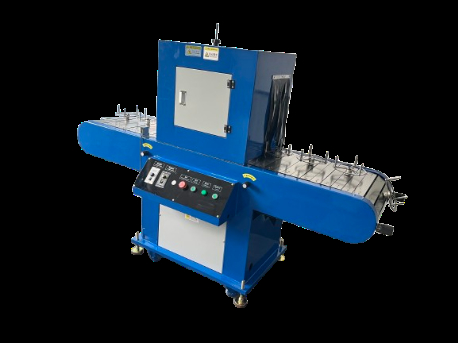

LEDUV Rotary 360 Degree Curing Machine Screen Printing Conveyor Dryer

Büyük resim : LEDUV Rotary 360 Degree Curing Machine Screen Printing Conveyor Dryer

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	CG
Sertifika:	CE*RoHS
Model numarası:	CG-GHL-W400-360*27-A/C

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1set
Fiyat:	5500-6000usd 1 set
Ambalaj bilgileri:	Ahşap kasa
Teslim süresi:	10-15 iş günü
Ödeme koşulları:	L/C, T/T
Yetenek temini:	10 set/gün

İletişim

LEDUV Rotary 360 Degree Curing Machine Screen Printing Conveyor Dryer

Açıklama

Anahtar kelime:	UV Sertleştirme Taşıyıcı Sistemleri	Güç:	1500W
Giriş voltajı:	AC85-265V	Dalga uzunluğu:	395nm/365nm
Soğutma Yolu:	Su soğutma	UV yoğunluğu:	18W/CM2
Garanti:	2 yıl	Paketi:	Ahşap kasa
Vurgulamak:	360 degree UV curing machine , LEDUV rotary conveyor dryer , screen printing UV dryer

LEDUV Rotary 360 Degree Curing Machine Screen Printing Conveyor Dryer

UV Curing Conveyor Systems Description

" LED" UV curing lamp is a new technology and way emitting ultraviolet ray radiation to dry UV series materials resin/ink/varnish/adhesive/coating etc with fast speed and good peformance in nowadays .

UV Curing Conveyor Systems Datasheet

Model	CG-GHL-W400-360*27-A/C	lamp color	Rose golden
Power	1500W	Chip brand	LG/Seoul
Input voltage	AC85-265V	Wave length	365/385/395/405nm
Application	UV ink/vanish/coating /adhesive curing	Life span	20000H
Cooling way	Water cooling	Emitting window size	customized
UV intensity	18W/CM2	Dimmable	0%-100%
Best emitting distance	30-50mm	Package	wooden case

UV Curing Conveyor Systems Advantages

Energy-saving ,normally 1000W LEDUV equal to 6000W mercury lamp drying effect .
Environment friendly , No mercury. No ozone making and VOC discharge.
NO warm-up , turn on/off instantly.
Low temperature, can be used for PE and film ink cuing .
Long lifespan, 20000hours .

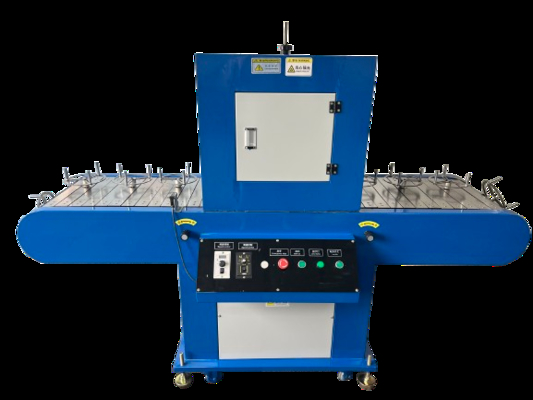

LEDUV Rotary 360 Degree Curing Machine Screen Printing Conveyor Dryer 0

LEDUV Rotary 360 Degree Curing Machine Screen Printing Conveyor Dryer 1

UV Curing Conveyor Systems FAQ:

Q1: What’s the wavelength of the leduv lamp ?

A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.

Q2: What’s your led brand ?

A2:LG/Seoul

Q3: What’s the material of lamp and lens ?

A3: Aluminium /quartz

Q4: What’s the cooling way for the leduv curing system ?

A4: Water or air cooling

Q5: The uv intensity can be change?

A5: Yes, the uv intensity is changeable from 0%-100%

Q6: What’s the max energy of uvled lamp ?

A6: It’s depend on emitting time , the longer the higher energy output total amount.

Q7: What’s the lifespan of the uvled curing lamp ?

A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
